主要尺寸和性能数据
H |
48mm |
height system |
|
B |
100mm |
width carriage |
|

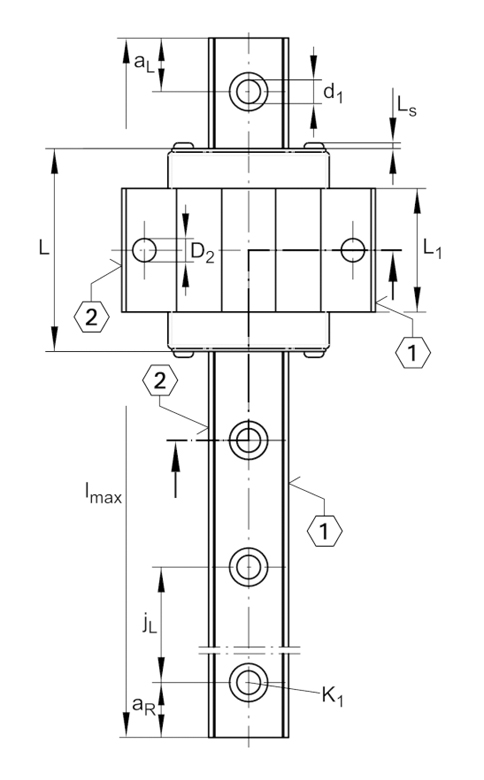

L |
76.2mm |
overall length carriage 1 |
|
C |
24,600 N |
dynamic load rating 1 |
|
C0 |
39,000N |
static load rating 1 |
|

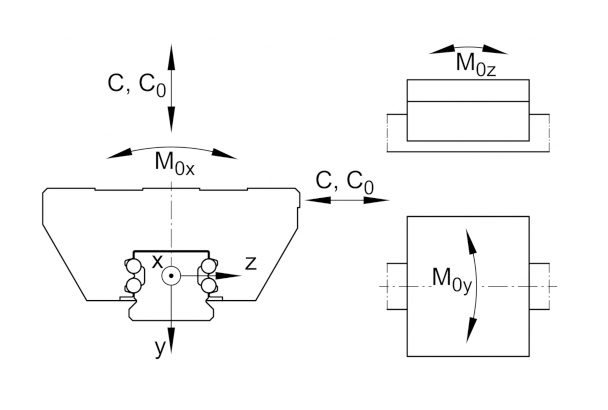

M0x |
790Nm |
static moment rating about X axis |
|
M0y |
330Nm |
static moment rating about Y axis |
|
M0z |
330Nm |
static moment rating about Z axis |
|
≈m |
1.04kg |
重量 |

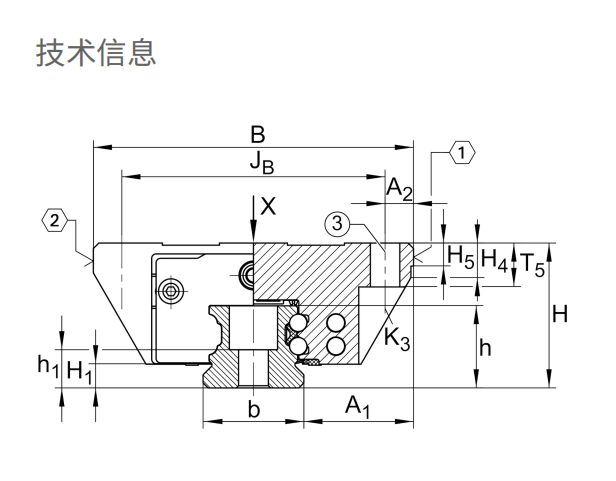

安装尺寸
A1 |
33mm |
||
JB |
82mm |
||
b |
34mm |
width rail |
|
A2 |
9mm |
||
L1 |
44.2mm |
||
LS |
1.65 mm |
||
JL |
50mm |
||
H1 |
6.7mm |
||
H4 |
14.3mm |
||
H5 |
6.75mm |
||
T5 |
13.5mm |
||
K3 |
M8 |
fixing screws below (DIN ISO 4762-12.9) |
|
K3 MA |
41 Nm |
maximum tightening torque 2 |
|
D2 |
8.6 mm |
|
|

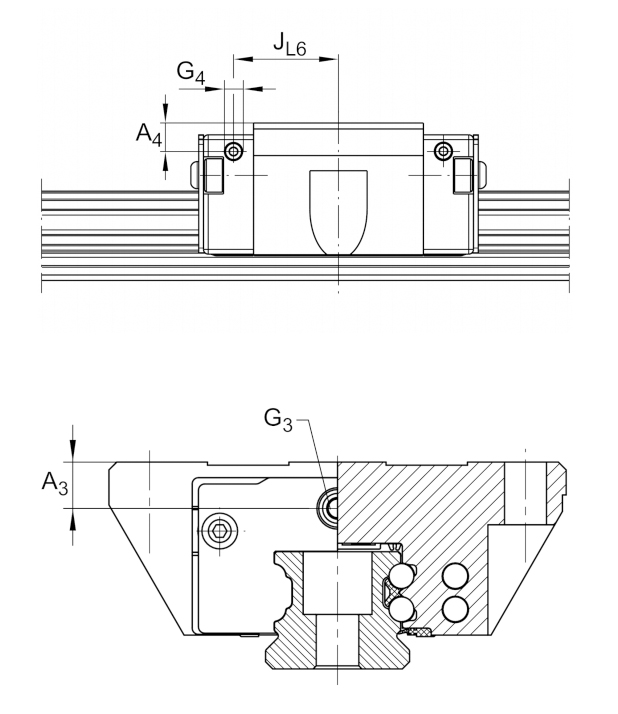

A3 |
12.3mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
t G3 |
7mm |
maximum permissible screw depth for lubrication |
|
A4 |
116mm |
position lubrication connector |
|
G4 |
M6 mm |
lubrication connector |
|
t G4 |
7 mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
29.1mm |
position lubrication connector |
