KWVE35-B-N

循环球轴承滑块 滑块 KWVE..-B-N, 低型滑块, 四列

图1.jpg 图2.jpg 图3.jpg 图4.jpg 图5.jpg

主要尺寸和性能数据



H

44mm

height system


B

100mm

width carriage


L

112mm

overall length carriage 1

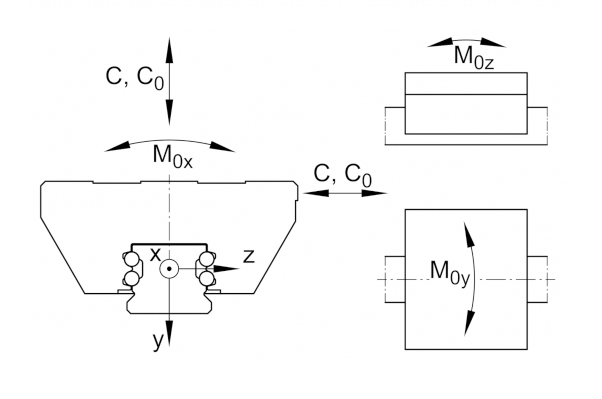

C

38,000 N

dynamic load rating 1


C0

72,000N

static load rating 1


M0x

1,465Nm

static moment rating about X axis


M0y

1,020Nm

static moment rating about Y axis


M0z

1,020Nm

static moment rating about Z axis


≈m

1.56kg

重量

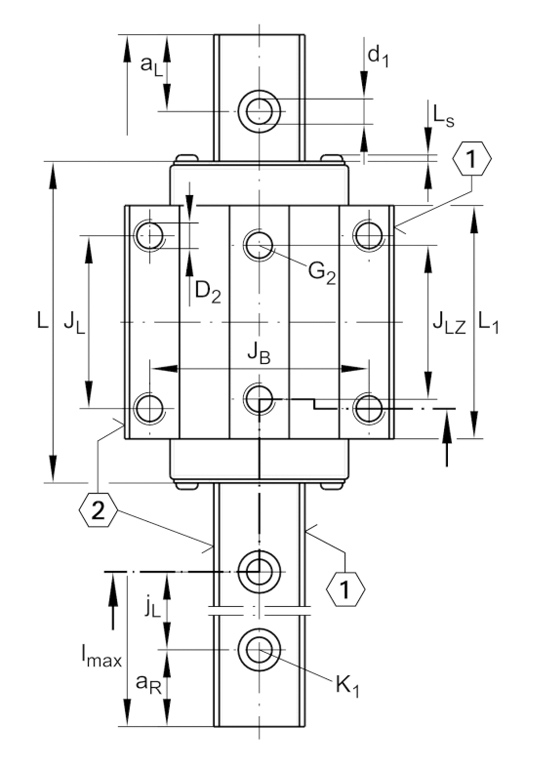

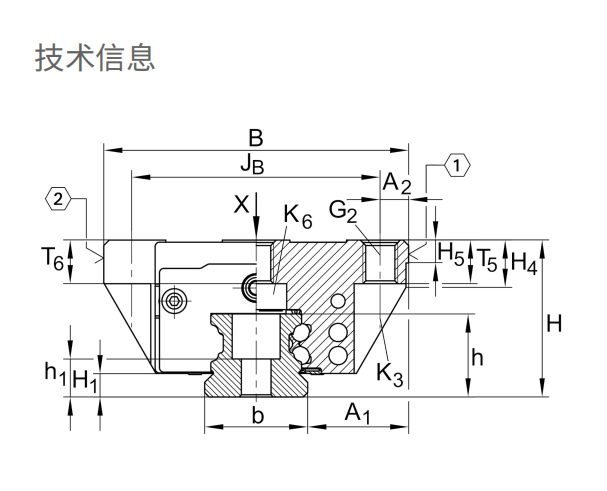

安装尺寸

A1

33mm


JB

82mm


b

34mm

width rail

A2

9mm


L1

80mm


LS

1.65 mm


JL

62mm


JLZ

52 mm


H1

6.7mm


H4

10.3mm


H5

6.75mm


T5

13mm


T6

8.3 mm


G2

M10

fixing screws above (DIN ISO 4762-12.9)

G2 MA

41 Nm

maximum tightening torque 2

K3

M8

fixing screws below (DIN ISO 4762-12.9)

K3 MA

41 Nm

maximum tightening torque 2

K6

M8

fixing screws below (DIN 7984-8.8)

K6 MA

12 Nm

maximum tightening torque 2

D2

8.6 mm

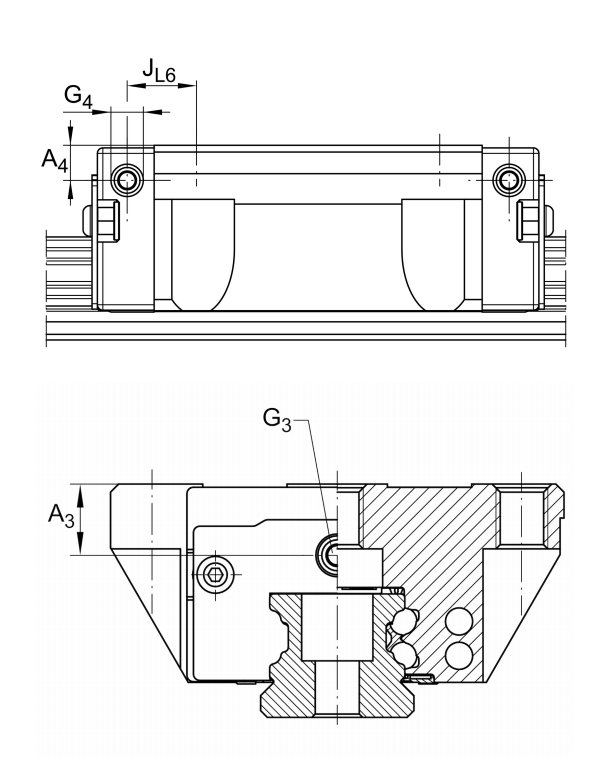

A3

8.3mm

position lubrication connector

G3

M6

lubrication connector

t G3

7mm

maximum permissible screw depth for lubrication

A4

7mm

position lubrication connector

G4

M6 mm

lubrication connector

t G4

7 mm

maximum permissible screw depth for lubrication connectors

JL6

16mm

position lubrication connector
