主要尺寸和性能数据
H |
70mm |
height system |
|
B |
86mm |
width carriage |
|
L |
172.7mm |
overall length carriage 1 |
|
C |
82,000N |
dynamic load rating 1 |
|
C0 |
181,000 N |
static load rating 1 |
|
M0x |
4,635Nm |
static moment rating about X axis |
|
M0y |
4,000Nm |
static moment rating about Y axis |
|
M0z |
4,000 Nm |
static moment rating about Z axis |
|
≈m |
4.27kg |
重量 |
安装尺寸
A1 |
20.5mm |
||
JB |
60mm |
||
b |
45mm |
width rail |
|
A2 |
13mm |
||
L1 |
134.6mm |
||
LS |
2.2 mm |
||
JL |
80mm |
||
H1 |
9.7mm |
||
H4 |
19.9 mm |
||
H5 |
9.25mm |
||
T5 |
17mm |
||
G2 |
M10 |
fixing screws above (DIN ISO 4762-12.9) |
|
G2 MA |
83 Nm |
maximum tightening torque 2 |
|

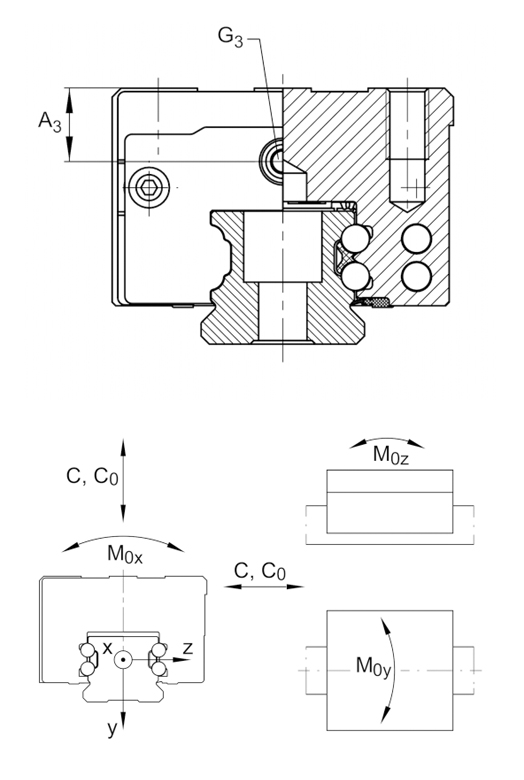

A3 |
26.5mm |
position lubrication connector |
|
G3 |
M6 |
lubrication connector |
|
t G3 |
7mm |
maximum permissible screw depth for lubrication |
|
A4 |
26.5mm |
position lubrication connector |
|
G4 |
M6 mm |
lubrication connector |
|
t G4 |
7 mm |
maximum permissible screw depth for lubrication connectors |
|
JL6 |
35.3mm |
position lubrication connector |
