主要尺寸和性能数据
L |
96.4 mm |
||
B |
38.1 mm |
Width |
|
H |
28.6 mm |
Height |
|
C |
107,000 N |
Load capacity Dynamic |
|
C0 |
86,000 N |
Load capacity static |
|
≈m |
0.631 kg |
重量 |

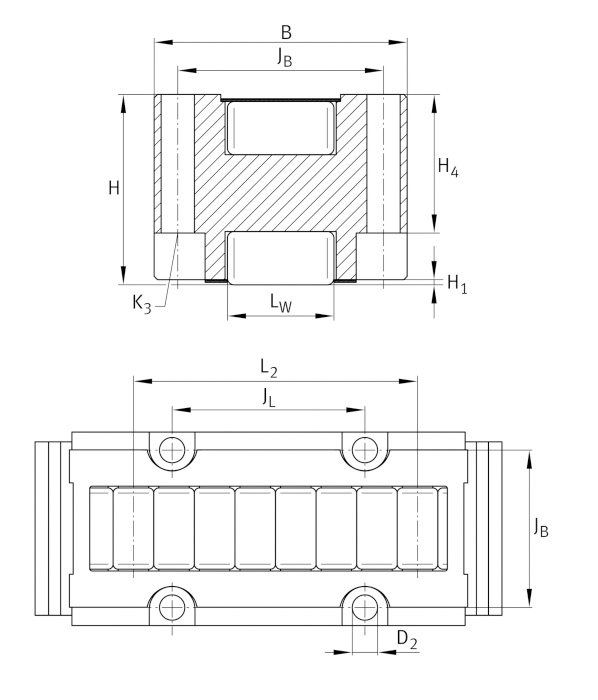

安装尺寸
L1 |
77.5 mm |
|
JB |
31 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
38 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
58.5 mm |
|
LW |
16 mm |
|
H4 |
20.8 mm |
|
K3 |
M4 |
Size thread K3 1 |
K3 MA |
5 mm |
Tightening Torque fixing screws |
D2 |
5 mm |
