主要尺寸和性能数据
L |
142 mm |
||
B |
50.8 mm |
Width |
|
H |
38.1 mm |
Height |
|
C |
205,000 N |
Load capacity Dynamic |
|
C0 |
171,000 N |
Load capacity static |
|
≈m |
1.75 kg |
重量 |

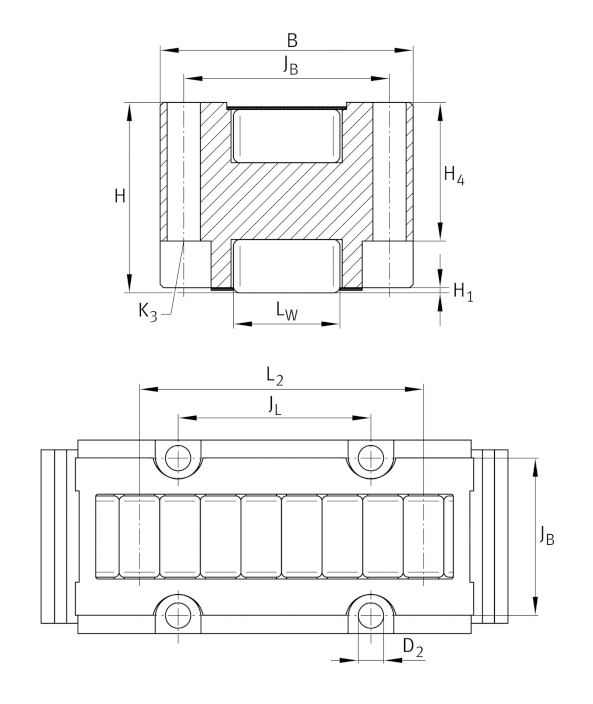

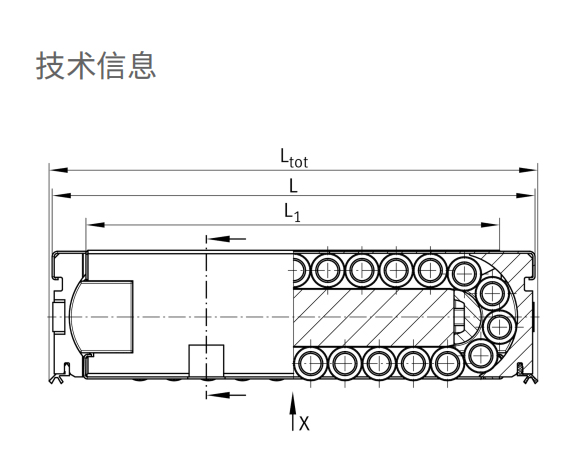

安装尺寸
L1 |
121.5 mm |
|
JB |
41 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
51 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
90 mm |
|
LW |
20 mm |
|
H4 |
27.7 mm |
|
K3 |
M5 |
Size thread K3 1 |
K3 MA |
10 mm |
Tightening Torque fixing screws |
D2 |
6 mm |
