主要尺寸和性能数据
L |
198 mm |
||
B |
76.2 mm |
Width |
|
H |
57.2 mm |
Height |
|
C |
435,000 N |
Load capacity Dynamic |
|
C0 |
345,000 N |
Load capacity static |
|
≈m |
5.74 kg |
重量 |

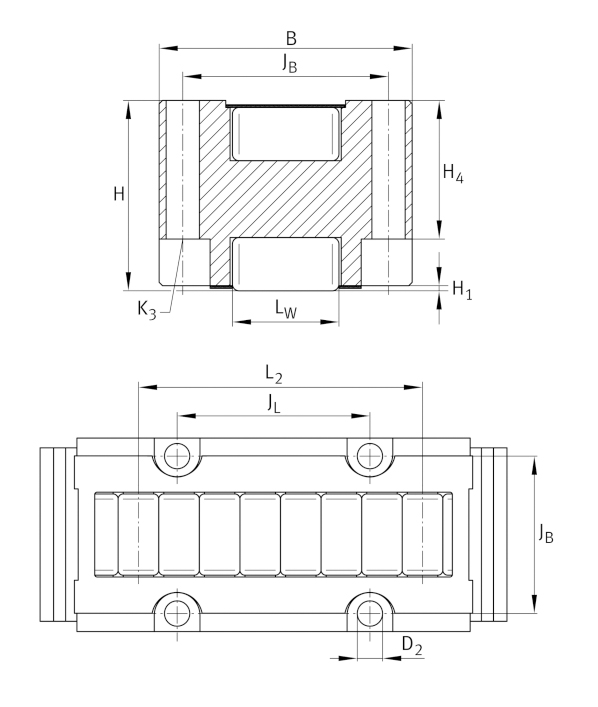

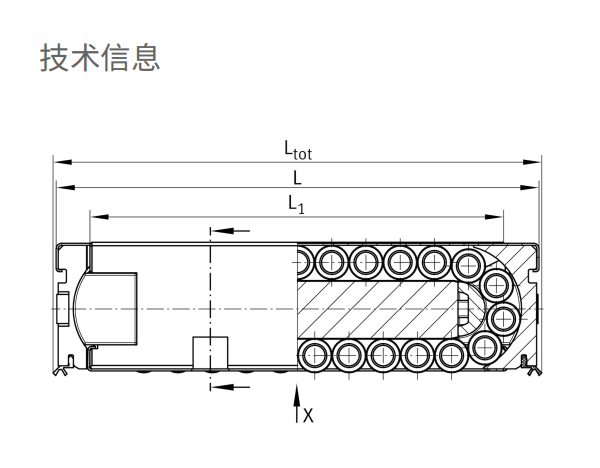

安装尺寸
L1 |
158 mm |
|
JB |
62 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
76.2 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
126 mm |
|
LW |
30 mm |
|
H4 |
42 mm |
|
K3 |
M6 |
Size thread K3 1 |
K3 MA |
17 mm |
Tightening Torque fixing screws |
D2 |
7 mm |
