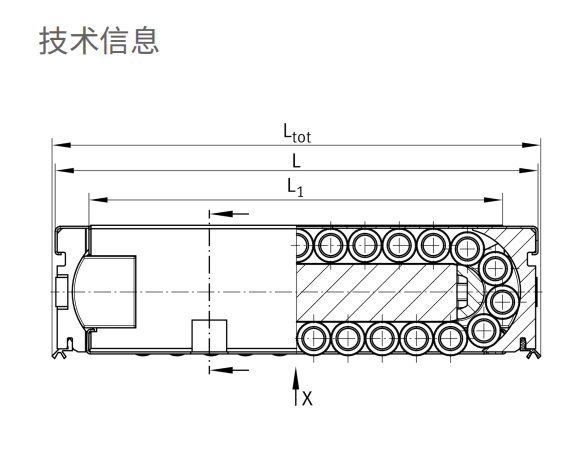

主要尺寸和性能数据
L |
264 mm |
||
B |
101.6 mm |
Width |
|
H |
76.2 mm |
Height |
|
C |
790,000 N |
Load capacity Dynamic |
|
C0 |
620,000 N |
Load capacity static |
|
≈m |
13.25 kg |
重量 |

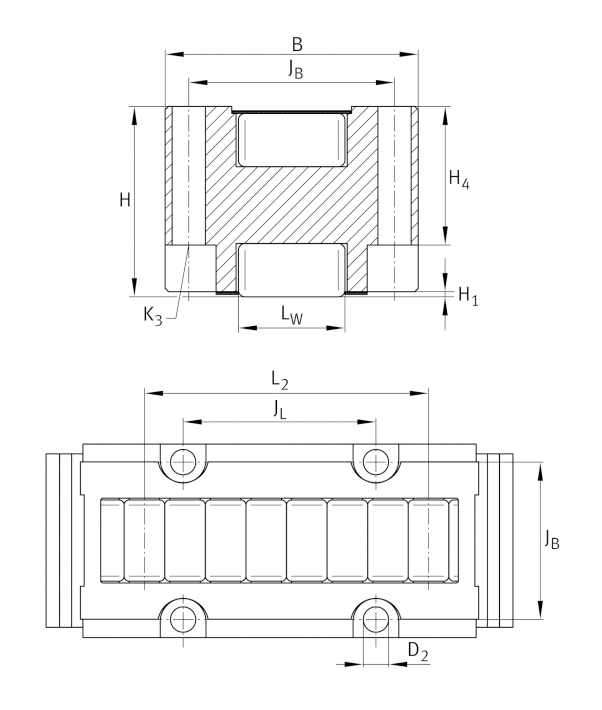

安装尺寸
L1 |
211 mm |
|
JB |
82.5 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
101.6 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
167 mm |
|
LW |
40 mm |
|
H4 |
56.3 mm |
|
K3 |
M8 |
Size thread K3 1 |
K3 MA |
41 mm |
Tightening Torque fixing screws |
D2 |
9 mm |
