主要尺寸和性能数据
L |
51 mm |
||
B |
22.2 mm |
Width |
|
H |
14.3 mm |
Height |
|
C |
21,700 N |
Load capacity Dynamic |
|
C0 |
17,600 N |
Load capacity static |
|
≈m |
102 g |
重量 |

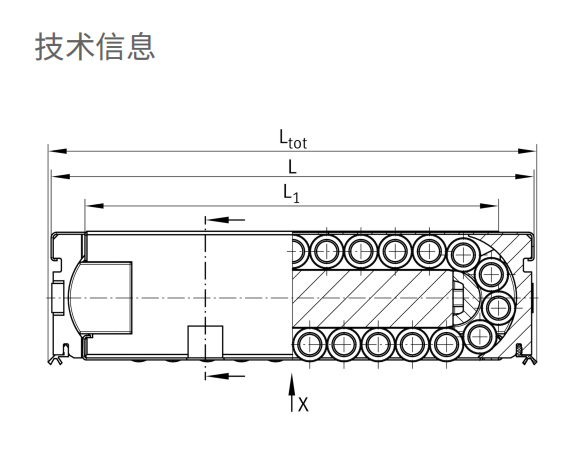

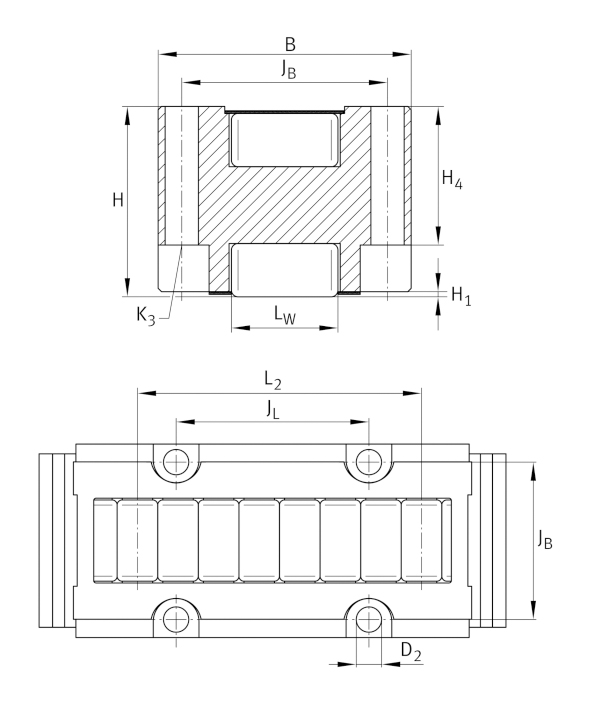

安装尺寸
L1 |
37.8 mm |
|
JB |
17.1 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
19.1 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
31 mm |
|
LW |
9 mm |
|
H4 |
10.3 mm |
|
K3 |
M2,5 |
Size thread K3 1 |
K3 MA |
1 mm |
Tightening Torque fixing screws |
D2 |
3 mm |
