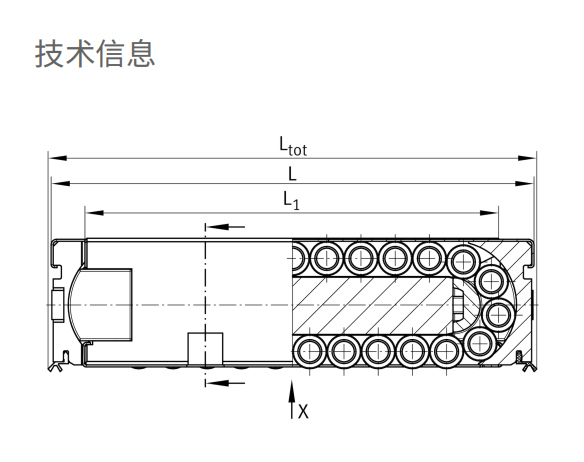

主要尺寸和性能数据
L |
68.5 mm |
||
B |
25.4 mm |
Width |
|
H |
19.1 mm |
Height |
|
C |
44,000 N |
Load capacity Dynamic |
|
C0 |
37,500 N |
Load capacity static |
|
≈m |
0.202 kg |
重量 |

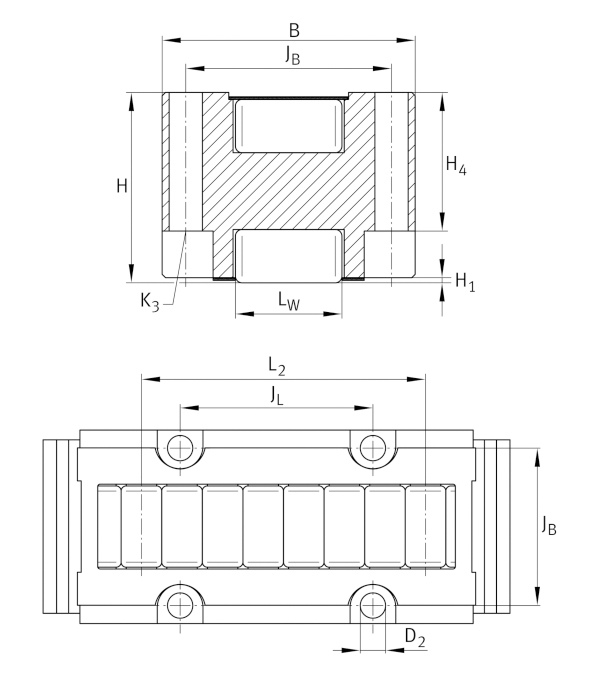

安装尺寸
L1 |
54.6 mm |
|
JB |
20.6 mm |
Mounting Dimension |
Tol JB |
±0,1 mm |
Tolerance |
JL |
25.5 mm |
Mounting Dimension |
Tol JL |
±0,1 mm |
Tolerance |
H1 |
0.1 mm |
|
L2 |
42 mm |
|
LW |
10 mm |
|
H4 |
14.8 mm |
|
K3 |
M3 |
Size thread K3 1 |
K3 MA |
1.8 mm |
Tightening Torque fixing screws |
D2 |
3.65 mm |
